RAM 4151 Bridge Crane Revolver

For Bridge Crane

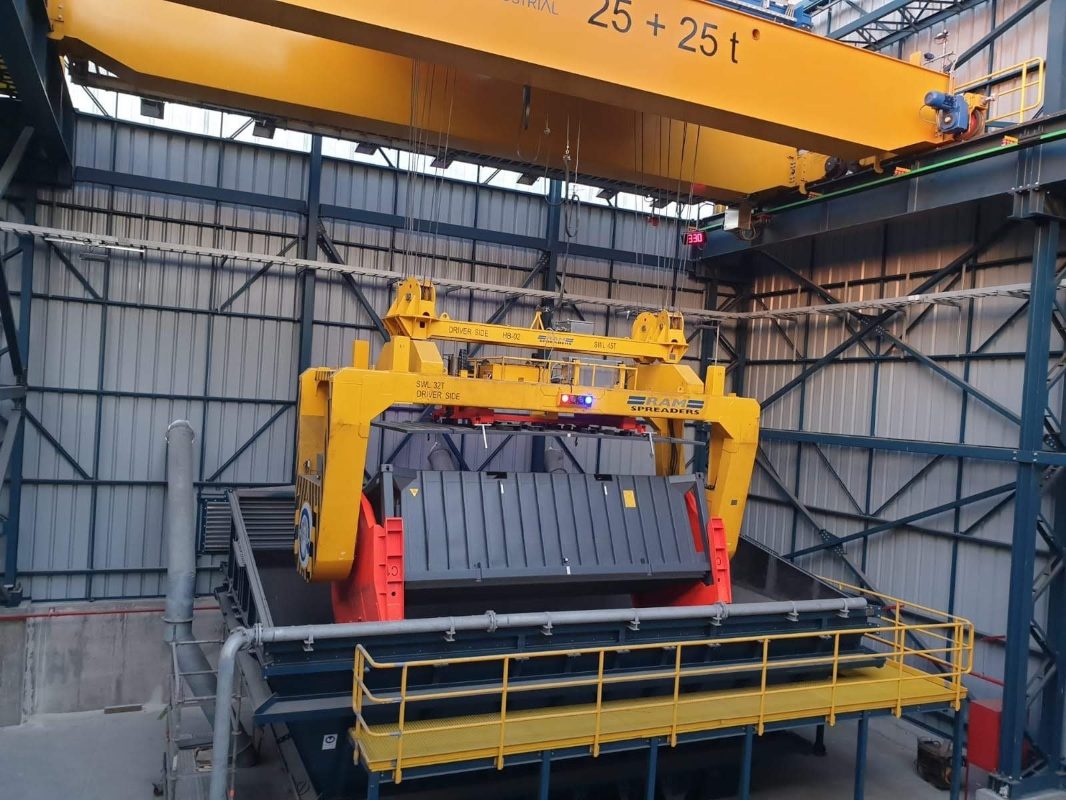

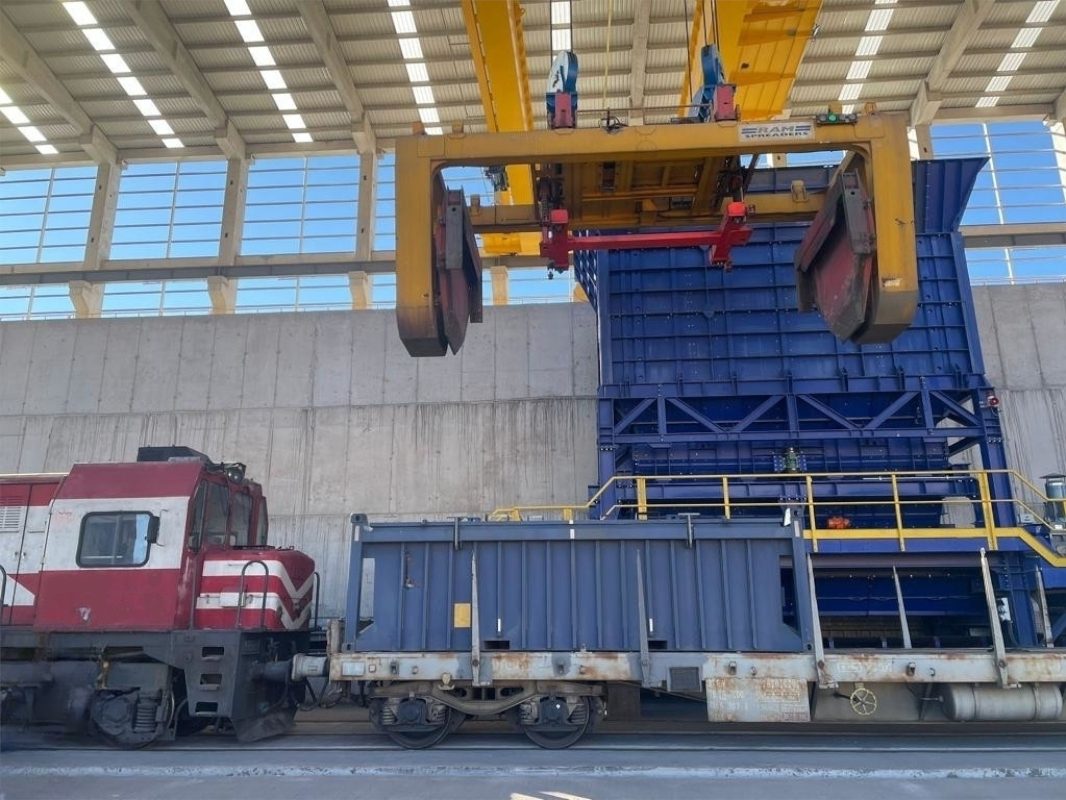

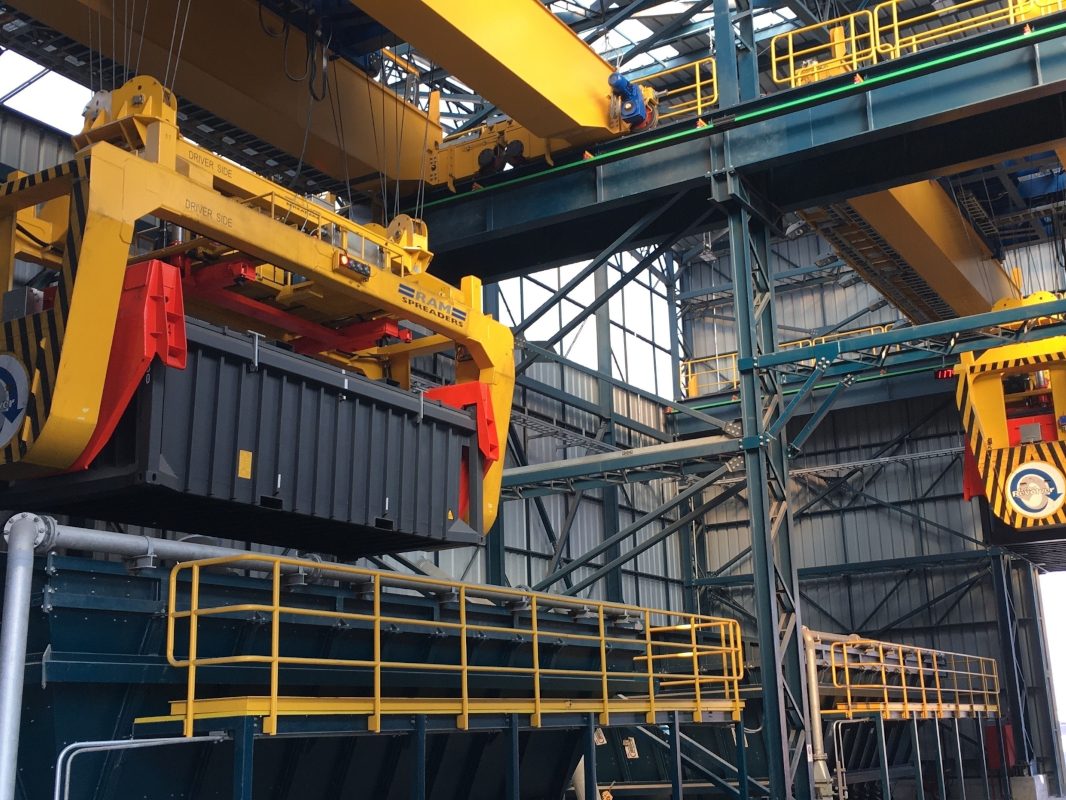

RAM 4151 Revolver is designed to handle single 20ft ISO open top containers or other specialised containers for handling bulk materials (subject to container model). This rotating spreader for bridge crane operations is a flexible, efficient and environmentally friendly solution to handle bulk materials.

The award winning 4151 Revolver for handling bulk materials on a bridge crane is manufactured from high quality steel and components. The Revolver's design has a safe weight lifting of 35 tonnes per cycle and ensures an efficient and reliable performance in a demanding container/bulk terminal environments.

The Revolver's large gather guides enable a large landing platform for quick and easy landing on the container. Moreover, the the gather guides will  support the container during rotation to prevent shear load on the twistlocks.

The rotating spreader is equipped with floating twistlocks which allows a certain amount of both lateral and longitude movement, as opposed to fixed twistlocks which are common for jamming.

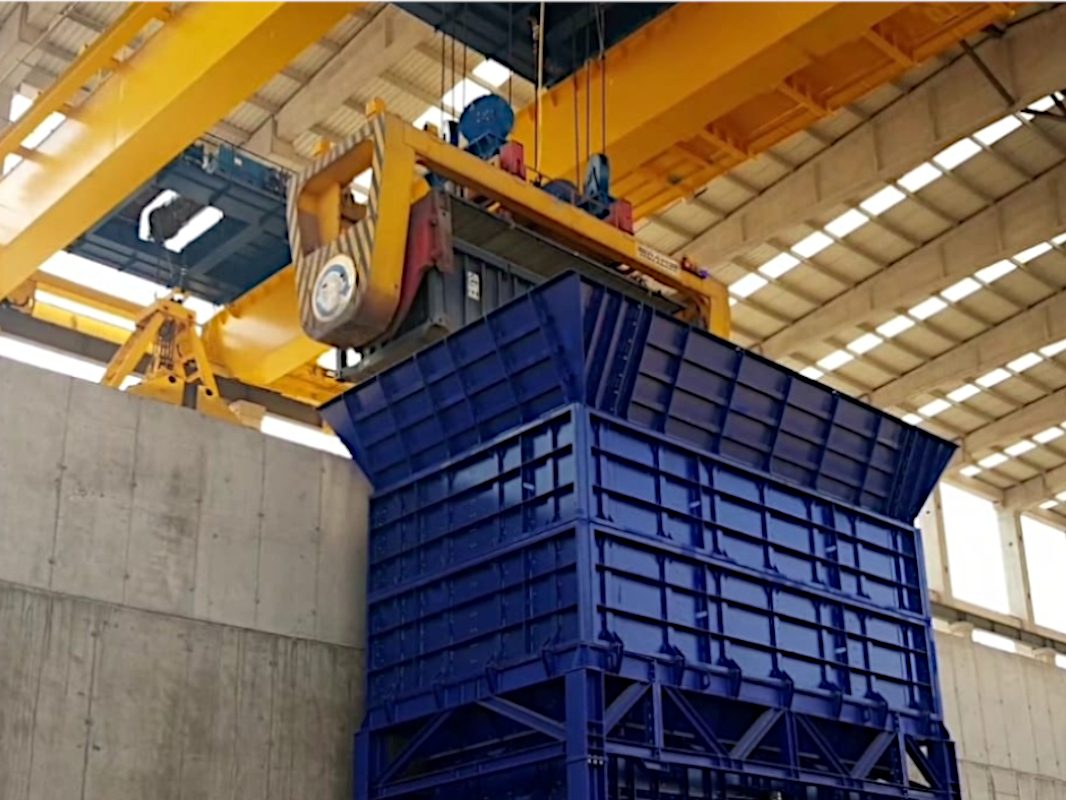

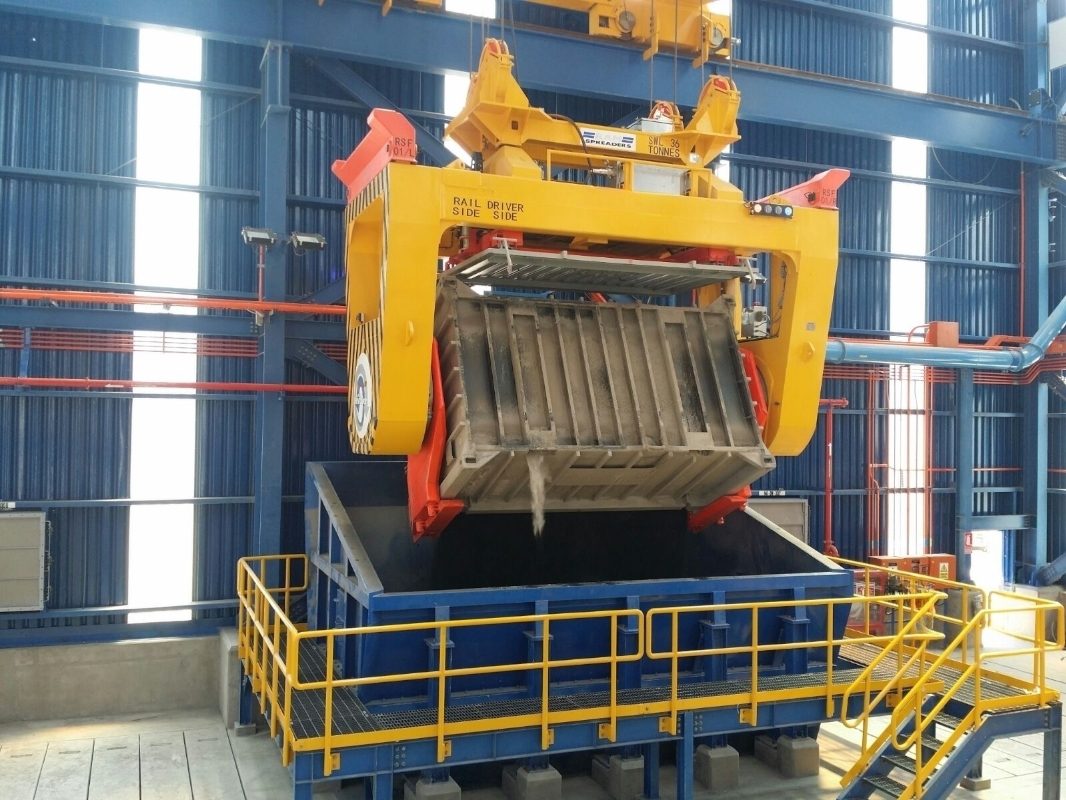

Once ready to unload the container, the rotating spreader removes the sealed lid in a semi-automatic process, and rotates the container 360 degrees unloading the commodity into the hopper. The lid is then replaced back on the container and the cycle continues.

The benefits to this containerised bulk handling system are endless...

Technical

  Item    Description
Twistlock Rotation 1.5 seconds
Container Rotation 360 degrees
Container Sizes Handled 20ft (subject to container model)
Lifting Capacity 35t SWL
Commodities Handled Copper Concentrate, Iron Ore, Scrap Metals, Soya, Mineral sands, Grains, Wood Pellets/Chips, Coal & Pet Coke, Bagged Materials, Zinc, etc.

Benefits

Clean & Green

No dust is generated or exposed to the environment as containers are sealed shut. When unloading, the Revolver removes the lid semi-autonomously and then gently rotates at the bottom of the hatch.

Product Protection

As containers are sealed shut until unloading, the system prevents loss of commodity or product quality being degraded (SAVING BIG).

Flexible

Over the years, RAM has shown how the Revolver can smoothly integrate into any port infrastructure or logistics type at low costs.

Fast Contingency

The bulk handling system has the ability to stock pile the commodity (sustainably) until you are ready to unload the commodity.

Blend Materials

Minerals can be blended using the rotating spreader and then quality tested (and recorded) before loading onto the ship.

Brochure

RAM REVOLVER FOR CONTAINERISED BULK HANDLING

Further Info

Certification
All RAM spreaders are manufactured at our purpose built production facility in accordance with ISO 9001:2008:2008, ISO 14001;2004 and DIN 18800-7 welding standard.

Fully Tested
All spreaders are fully load tested, function tested and are delivered together with operation and maintenance manuals and associated certification.

Warranty
All RAM Spreader products are supplied with full equipment warranty.
